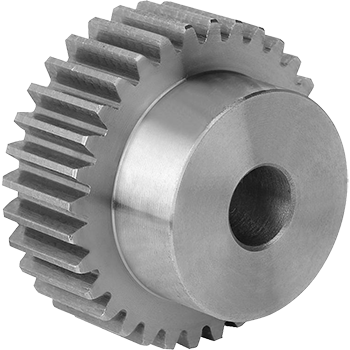

Module 1.5

Name: Module 1.5
Brand: A2Z Metric Components
SKU: module-15
Availability: InStock

REQUEST A QUOTE

**PLASTIC, PLATE STYLE & CUSTOM GEARS ALSO AVAILABLE**

MATERIAL: C45 Steel & Stainless Steel 1.4305 - C45 Steel Can be Heat Treated

20° Pressure Angle

SIZES IN MM

Download Spec Sheet

*If data table appears to be cutoff please scroll horizontally

Part #	No. Of Teeth	Bore-BH8	Hub Dia. - d	Outside Dia. - dk	Pitch Dia. - do
M1.5B12	12	8	14	21	18
M1.5B13	13	8	14	22.5	19.5
M1.5B14	14	8	18	24	21
M1.5B15	15	8	18	25.5	22.5
M1.5B16	16	8	20	27	24
M1.5B17	17	8	20	28.5	25.5
M1.5B18	18	8	20	30	27
M1.5B19	19	8	20	31.5	28.5
M1.5B20	20	8	25	33	30
M1.5B21	21	10	25	34.5	31.5
M1.5B22	22	10	25	36	33
M1.5B23	23	10	25	37.5	34.5
M1.5B24	24	10	25	39	36
M1.5B25	25	10	25	40.5	37.5
M1.5B26	26	12	30	42	39
M1.5B27	27	12	30	43.5	40.5
M1.5B28	28	12	30	45	42
M1.5B29	29	12	30	46.5	43.5
M1.5B30	30	12	30	48	45
M1.5B31	31	12	35	49.5	46.5
M1.5B32	32	12	35	51	48
M1.5B33	33	12	35	52.5	49.5
M1.5B34	34	12	35	54	51
M1.5B35	35	12	35	55.5	52.5
M1.5B36	36	12	35	57	54
M1.5B37	37	12	40	58.5	55.5
M1.5B38	38	12	40	60	57
M1.5B39	39	12	40	61.5	58.5
M1.5B40	40	12	40	63	60
M1.5B41	41	14	50	64.5	61.5
M1.5B42	42	14	50	66	63
M1.5B43	43	14	50	67.5	64.5
M1.5B44	44	14	50	69	66
M1.5B45	45	14	50	70.5	67.5
M1.5B46	46	14	50	72	69
M1.5B47	47	14	50	73.5	70.5
M1.5B48	48	14	50	75	72
M1.5B49	49	14	50	76.5	73.5
M1.5B50	50	14	50	78	75
M1.5B51	51	15	60	79.5	76.5
M1.5B52	52	15	60	81	78
M1.5B53	53	15	60	82.5	79.5
M1.5B54	54	15	60	84	81
M1.5B55	55	15	60	85.5	82.5
M1.5B56	56	15	60	87	84
M1.5B57	57	15	60	88.5	85.5
M1.5B58	58	15	60	90	87
M1.5B59	59	15	60	91.5	88.5
M1.5B60	60	15	60	93	90
M1.5B61	61	20	70	94.5	91.5
M1.5B62	62	20	70	96	93
M1.5B63	63	20	70	97.5	94.5
M1.5B64	64	20	70	99	96
M1.5B65	65	20	70	100.5	97.5
M1.5B66	66	20	70	102	99
M1.5B67	67	20	70	103.5	100.5
M1.5B68	68	20	70	105	102
M1.5B69	69	20	70	106.5	103.5
M1.5B70	70	20	70	108	105
M1.5B71	72	20	80	111	108
