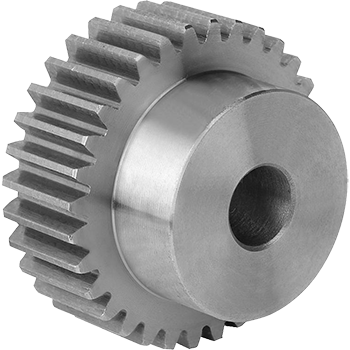

Module 3

Name: Module 3
Brand: A2Z Metric Components
SKU: module-3
Availability: InStock

REQUEST A QUOTE

**PLASTIC, PLATE STYLE & CUSTOM GEARS ALSO AVAILABLE**

MATERIAL: C45 Steel & Stainless Steel 1.4305 - C45 Steel Can be Heat Treated

20° Pressure Angle

SIZES IN MM

Download Spec Sheet

*If data table appears to be cutoff please scroll horizontally

Part #	No. Of Teeth	Bore-BH8	Hub Dia. - d	Outside Dia. - dk	Pitch Dia. - do
M3B12	12	12	25	42	36
M3B13	13	12	25	45	39
M3B14	14	12	30	48	42
M3B15	15	12	35	51	45
M3B16	16	15	38	54	48
M3B17	17	15	42	57	51
M3B18	18	15	45	60	54
M3B19	19	15	45	63	57
M3B20	20	15	45	66	60
M3B21	21	15	45	69	63
M3B22	22	15	50	72	66
M3B23	23	15	50	75	69
M3B24	24	16	50	78	72
M3B25	25	16	60	81	75
M3B26	26	16	60	84	78
M3B27	27	16	60	87	81
M3B28	28	16	60	90	84
M3B29	29	16	60	93	87
M3B30	30	16	60	96	90
M3B31	31	20	70	99	93
M3B32	32	20	70	102	96
M3B33	33	20	70	105	99
M3B34	34	20	70	108	102
M3B35	35	20	70	111	105
M3B36	36	20	70	114	108
M3B37	37	20	80	117	111
M3B38	38	20	80	120	114
M3B39	39	20	80	123	117
M3B40	40	20	80	126	120
M3B41	41	20	90	129	123
M3B42	42	16	20	132	126
M3B43	43	16	20	135	129
M3B44	44	16	20	138	132
M3B45	45	16	20	141	135
M3B46	46	16	20	144	138
M3B47	47	16	20	147	141
M3B48	48	16	20	150	144
M3B49	49	16	20	153	147
M3B50	50	16	20	156	150
M3B54	54	20	20	168	162
M3B55	55	20	20	171	165
M3B56	56	20	20	174	168
M3B57	57	20	20	177	171
M3B60	60	20	20	186	180
M3B62	62	20	20	192	186
M3B65	65	20	20	201	195
