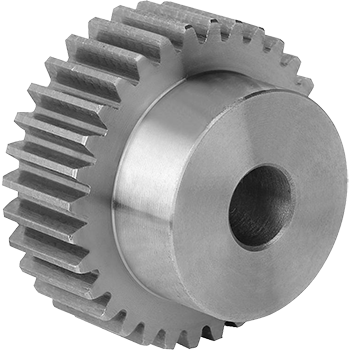

Module 2.5

Name: Module 2.5
Brand: A2Z Metric Components
SKU: module-25
Availability: InStock

REQUEST A QUOTE

**PLASTIC, PLATE STYLE & CUSTOM GEARS ALSO AVAILABLE**

MATERIAL: C45 Steel & Stainless Steel 1.4305 - C45 Steel Can be Heat Treated

20° Pressure Angle

SIZES IN MM

Download Spec Sheet

*If data table appears to be cutoff please scroll horizontally

Part #	No. Of Teeth	Bore-BH8	Hub Dia. - d	Outside Dia. - dk	Pitch Dia. - do
M2.5B12	12	10	22	35	30
M2.5B13	13	10	25	37.5	32.5
M2.5B14	14	10	28	40	35
M2.5B15	15	10	30	42.5	37.5
M2.5B16	16	12	32	45	40
M2.5B17	17	12	35	47.5	42.5
M2.5B18	18	12	35	50	45
M2.5B19	19	12	35	52.5	47.5
M2.5B20	20	14	40	55	50
M2.5B21	21	14	40	57.5	52.5
M2.5B22	22	14	45	60	55
M2.5B23	23	14	45	62.5	57.5
M2.5B24	24	14	45	65	60
M2.5B25	25	14	50	67.5	62.5
M2.5B26	26	14	50	70	65
M2.5B27	27	14	50	72.5	67.5
M2.5B28	28	14	50	75	70
M2.5B29	29	14	50	77.5	72.5
M2.5B30	30	16	55	80	75
M2.5B31	31	16	55	82.5	77.5
M2.5B32	32	16	55	85	80
M2.5B33	33	16	55	87.5	82.5
M2.5B34	34	16	55	90	85
M2.5B35	35	16	60	92.5	87.5
M2.5B36	36	16	60	95	90
M2.5B37	37	16	60	97.5	92.5
M2.5B38	38	16	60	100	95
M2.5B39	39	16	60	102.5	97.5
M2.5B40	40	20	70	105	100
M2.5B41	41	20	70	107.5	102.5
M2.5B42	42	20	70	110	105
M2.5B43	43	20	70	112.5	107.5
M2.5B44	44	20	70	115	110
M2.5B45	45	20	70	117.5	112.5
M2.5B46	46	20	70	120	115
M2.5B47	47	20	80	122.5	117.5
M2.5B48	48	20	80	125	120
M2.5B49	49	20	80	127.5	122.5
M2.5B50	50	20	80	130	125
M2.5B51	51	20	80	132.5	127.5
M2.5B52	52	20	90	135	130
M2.5B53	53	20	90	137.5	132.5
M2.5B54	54	20	90	140	135
M2.5B55	55	20	90	142.5	137.5
M2.5B56	56	20	100	145	140
M2.5B57	57	20	100	147.5	142.5
M2.5B58	58	20	100	150	145
M2.5B59	59	20	100	152.5	147.5
M2.5B60	60	20	100	155	150
M2.5B62	62	20	100	160	155
M2.5B63	63	20	100	162.5	157.5
M2.5B67	67	20	100	172.5	162.5
